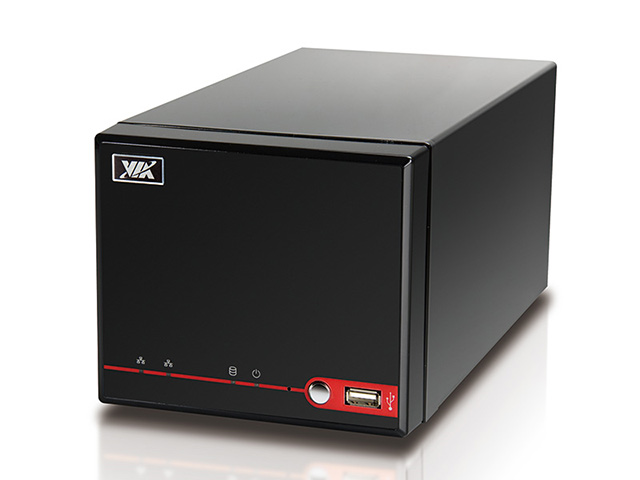

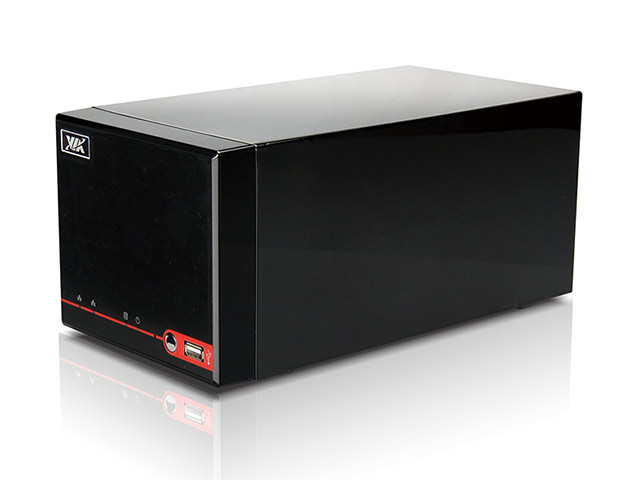

The M'SERV S2100 is a compact very low power consumption, extremely low volume barebones storage server ideal for building your own DIY NAS. The S2100 is powered by a 1.6GHz 64-bit Nano-ITX board, has 2x Gigabit LAN, supports up to 4GB of memory and 4TB (2x 2TB) 3.5in HDD and can be booted from Compact Flash as well as HDD, USB and LAN.
Configure your own M'SERV S2100
Dimensions: The S2100 packs all this into a 135 x 115 x 259 mm (5.3 x 4.5 x 10.2in) package - just 4 litres in volume.
Motherboard: 1.6GHz VIA Nano Processor with 800MHz FSB. VIA VX800 Unified Digital Media IGP Chipset with VIA Chrome9 Graphics. Memory support up to 4GB (2x 2GB DDR2 SODIMMs), 2x Gigabit LAN Sockets.
Drive Bays: Bootable Type 1 Compact Flash Slot underneath Motherboard; 2x 3.5in SATA 3GB/s Drive Bays with integrated SATA Data/Power connectors.

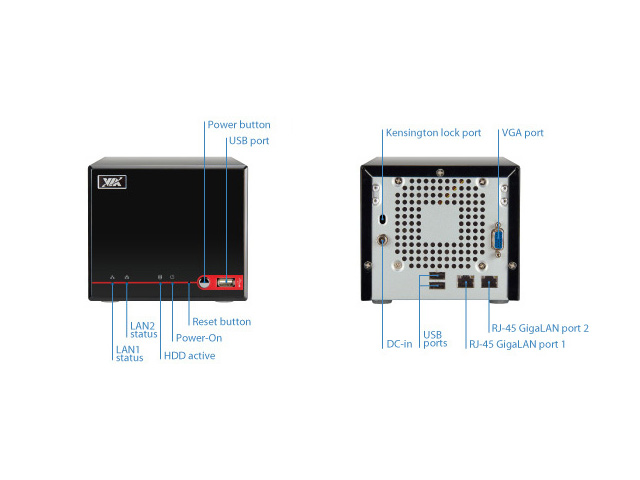

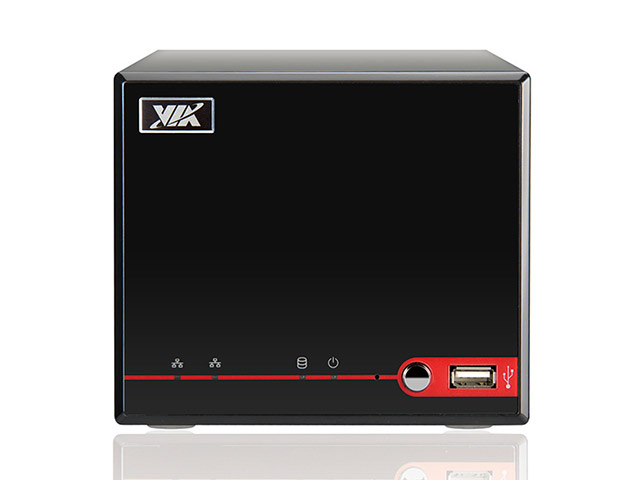

Front Panel: Power Switch, Reset Switch, USB 2.0 Port, Power, 2x LAN status, HDD activity LEDs.

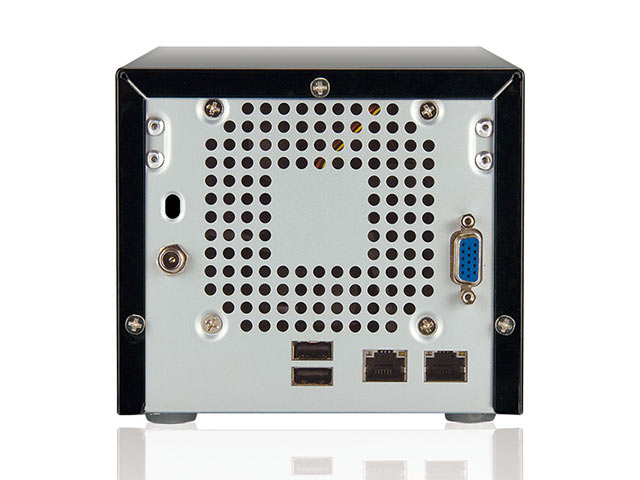

Rear Panel: 2x Gigabit Ethernet port; 12V DC-In (75W AC Adapter Provided); 2x USB 2.0; VGA monitor output; Kensington Lock Port.
Cooling: 8 cm low-noise ball-bearing fan at rear of case.
Power Supply: Internal DC Board and External Universal 75W 110-240V AC Adapter.
Package Contents: M’SERV S2100 Mini Server (comprising chassis & mainboard), Setup CD, 8 x HDD screws, Power cord, AC/DC adaptor, Installation guide.
Booting and OS Support: The S2100 can to be booted from USB, LAN, one of two 3.5in SATA Hard Drives mounted internally or from Compact Flash using its built in Compact Flash Adapter. Supports (minimum) Windows XP, Windows 7(x86 & x64), Windows Server 2008 R2, Linux, FreeBSD.
