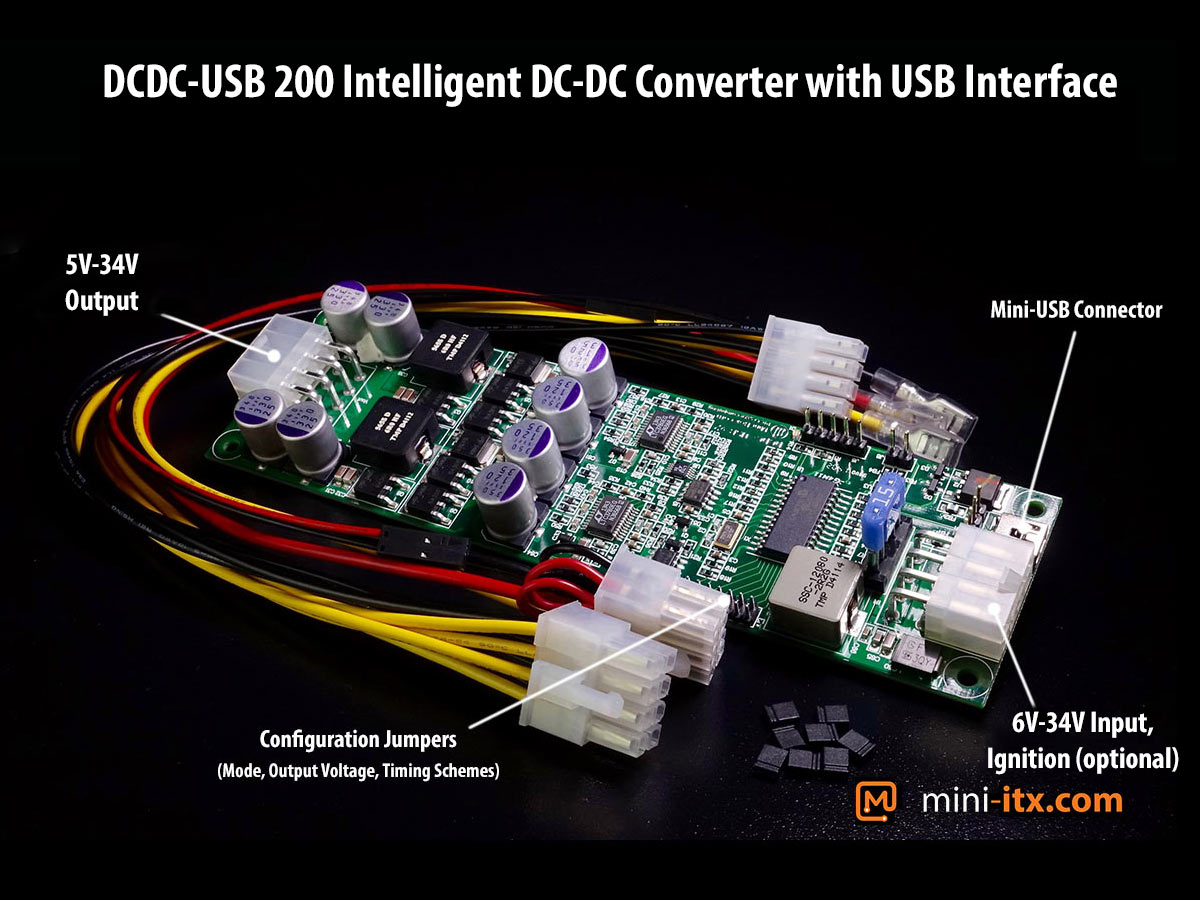

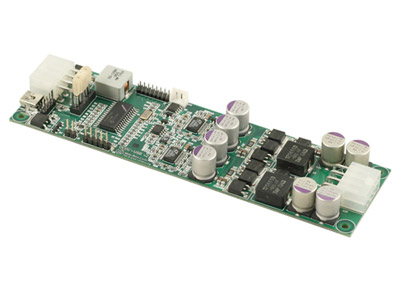

DCDC-USB-200 Intelligent DC-DC Converter (USB Programmable, up to 150W continuous, 180W peak)
The DCDC-USB-200 is a high power buck-boost microcontroller DC-DC converter measuring just 160 x 45 x 23mm. This unit accepts any 6-34V regulated or non-regulated input, and can output up to 150W (180W peak) at 12V, or at any voltage between 5-24V.
The output of the DCDC-USB-200 is 12V regulated by default, and can be changed using simple jumper settings to 5V, 6V, 9V, 12V, 13.5V, 18V or 24V or via a USB cable anywhere from 5-24V in 0.25V increments.
The DCDC-USB-200 can be used to power motherboards with 8pin single rail power input from any voltage, or to convert any voltage ranging 6-34V to any output from 5-24V.
Additional Cables: To power a Mini PC or Board with 12V 2.5/5.5mm input (e.g. all JBC units, and some 12V Thin-ITX), use the "P4 to 2.5/5.5mm DC Plug OUTPUT Cable". To power from one of our AC Adapters, use the "P4 to 2.5/5.5mm DC Barrel INPUT Cable". Both can be found in the "you may also require" section.
The DCDC-USB-200 has four modes of operation:
Dumb Mode: Regular buck-boost DC-DC converter with wide (6-34V) input producing a fixed 12V or 5-24V output.
Automotive: Acts as an intelligent ignition aware PSU - will send ON/OFF pulse to the motherboard when ignition is turned. Very low standby power consumption (under 1mA).
UPS Mode: Acts as an intelligent UPS unit, shutting down at prescribed battery voltages.
Scripted Mode: The DCDC-USB-200 can be programmed to wake up and sleep based on pre-programmed scripts.
Specifications: Dimensions: 160 x 45 x 23mm; Minimum Input Voltage: 6V; Maximum Input Voltage: Electronic shut down at 34V (clamping will occur 34-36V); Deep-Discharge shutdown threshold: 11.2V; Input Current Limit: 15A (protected by 20A mini-blade fuse); Max Output Power (peak): 160 Watts or 15A input current; Regulation Accuracy: 2.5%; Operating Temperature: -40 to 85 C; Storage Temperature: -55 to 85 C; MTBF: >100,000 Hours @ 65C; Efficiency at 9-16V Input: >94% with 12V 2A Output; Input and Output Connectors: Mini-Fit JR 8pin.
Further Specifications: The DCDC-USB-200 can be used as a remote on/off switch capable of switching up to 6A (8A peak). Fused input, TVS protected. Mini USB Type B connector (USB cable required for programming, not provided). All Solid Japanese made Sanyo SVPD Series Polymer Capactitors.
DCDC-USB-200 Windows source code
| Specifications | ||
|---|---|---|
| Model | DCDC-USB 200 Intelligent DC-DC Converter | |
| Form Factor | PCB | |
| Interface | USB Programmable | |
| Power Supply | ||
| Output Power | 150W | |
| Input | ||
| Input Voltage | 6-34V | |
| Connectors | 8-pin ATX 12V | |
| Output | ||
| Output Voltage | 5-24V | |
| Connectors | 8-pin ATX 12V | |
| Cooling | ||
| Operating Temperature | -40℃ - 85℃ | |
| Storage Temperature | -55℃ - 85℃ | |
| Type | Fanless | |
| Dimensions | ||
| W x L x H | 45 x 160 x 23 mm | |
