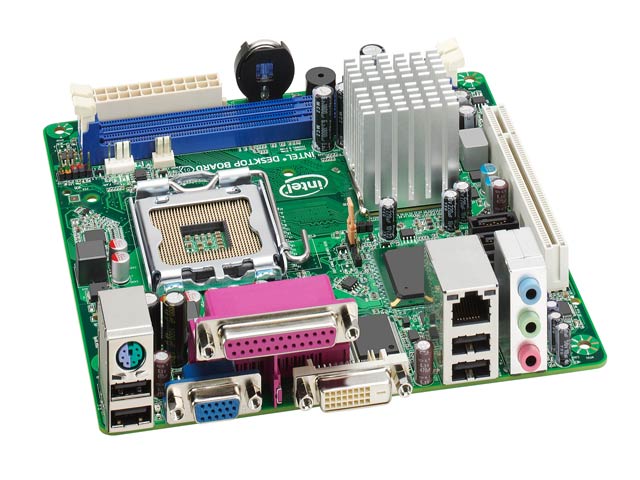

Intel DG41AN Socket LGA775 motherboard with Intel G41 Express Chipset and integrated GMA X4500 Graphics. Up to 4GB of DDR3 system memory. Realtek 8111E Gigabit LAN, Intel® High Definition Audio subsystem supports: 6-channel (5.1 + 2 independent multi-streaming) audio subsystem with three analog audio outputs using the Realtek ALC888S audio codec.

Rear Panel Connectors: PS/2 port (Keyboard or Mouse); 4x USB 2.0; VGA; DVI-D; Parallel; Gigabit Ethernet; 3x 3.5mm Audio Jacks.

Board Connectors: 2x DDR3 DIMM Sockets; 3x 3Gbps SATA; 1x PCI Slot; 24pin ATX Power Connector; 4pin 12v P4 Power Connector (needs to be connected); Serial Port Header; CPU Fan & System Fan; Chassis Intrusion Header; Front-Panel Header; Front-Audio Header; 2x USB Headers (for an additional 4x USB ports).

Case Compatibility: Chenbro NAS Chassis, Nexus Psile, Venus 669, Jou Jye 528i/568i, Array R2, Compucase 8K01/8K07. Other cases may work but you will need at least a 120W power supply and an appropriate low profile heatsink.

CPU Compatibility: Wide range of Intel Celeron, Pentium , Core 2 Duo and Core 2 Quad CPUs up to 65W TDP. Full CPU compatibility list

Note: The DG41AN supports up to 4GB DDR3 memory on 2x DDR3 DIMMs. This is not compatible with DDR or DDR2 memory. Fully tested DDR3 DIMMs are available here.

Intel DQ45EK Mini-ITX board supporting Dual and Quad core socket LGA 775 processors with Intel Q45 Express chipset, Integrated Intel 4500 graphics and ADI AD1882 audio; Intel vPRO technology; Up to 4GB of DDR2 667/800MHz RAM; Gigabit LAN; 4x SATA; eSATA; DVI-I & DVI-D graphics outputs; 10x USB 2.0 (inc 4 internal).

Configure an Intel Board, Processor and RAM

Rear Panel Connectors: DVI-I; HDMI; 6x USB 2.0; eSATA; Gigabit LAN; 5x switchable 3.5mm audio connectors; S/PDIF optical digital audio out.

Board connectors: 4x USB 2.0 connectors on 2x 9pin headers; Serial port header; 2x DDR2 667/800 DIMM sockets; 4x SATA 3GB/s supporting RAID 0,1,0+1,5; PCI Express x1; 24pin ATX power connector (supports 20pin ATX); 4pin 12V power connector (must be connected); Front Panel Audio; CIR in; CIR out; BIOS jumper; Chassis intrusion; LGA 775 processor socket; Chassis Fan; CPU Fan; Speaker; FPANEL; Alt power LED header.

Remote management: The DQ45EK supports Intel Active Management Technology and Intel vPRO technology which gives users the unprecedented ability to remotely maintain, manage, and protect their business PCs.

Suitable cases: The standard Intel LGA 775 heatsink is considerably taller than most Mini-ITX boards and the DQ45EK requires up to 90W under load (depending on CPU). The Nexus Psile, Venus 669, Compucase 8K01, Compucase 8K07, Silverstone SG05 and Jou Jue NU-528i/568i 220W all work perfectly with the DQ45EK. Most standard Mini-ITX cases will not work due to power supply size.

Note: The DQ45EK uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 DIMMs are available here.

Processor Compatibility: The DQ45EK is *not* provided with a processor. The board supports the following socket 775 processors: Intel Celeron; Intel Pentiuml Intel Core 2 Duo; Up to 65W Intel Core 2 Quad. A full compatibility list is here.

*Heatsinks: To use this board in a low profile case (e.g. M300, M350) please use the Akasa 7106HP Low Profile heatsink. The standard heatsink provided with the CPU will fit taller cases (including Compucase 8K01/8K07, Jou Jye 526/528/568). Use the Akasa 7107BS if using a 1U chassis.

DQ45EK BIOS, Manuals and Drivers

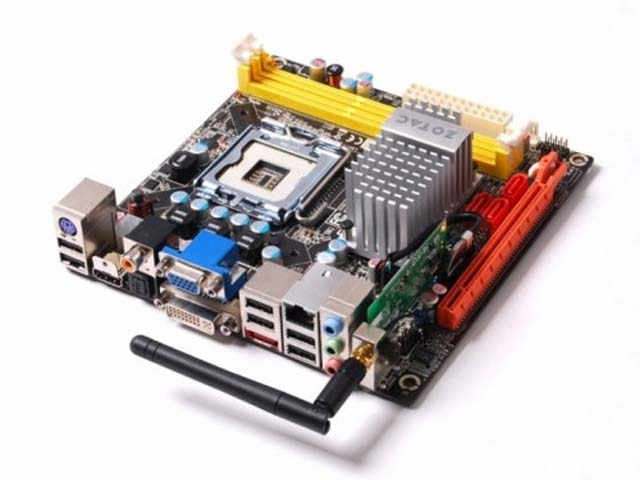

Enhanced version of Zotac GeForce 9300-ITX WiFi with 580MHz GPU clock speed supporting dual and quad core socket LGA 775 processors with nVidia MCP7A chipset, powerful integrated nVidia Geforce 9300 graphics supports PureVideo HD and CUDA H264 acceleration; RAID 0, 1, 0+1, 5; Realtek ALC662 5.1 Audio and Integrated 802.11b/g Wi-Fi. Up to 8GB of DDR2 667/800MHz RAM; Gigabit LAN; VGA, DVI-I & HDMI graphics outputs; S/PDIF; eSATA; 12x USB 2.0 (inc 6 internal); Fully Vista Compatible.

New enhanced GF9300-I-E board has the following differences from earlier PCB versions: GPU Core clock running at 580MHz (from 450MHz), shaders at 1400MHz (from 1200MHz); Black GPU heatsink; DVI is Dual-Link, not Single-Link; S/PDIF header added to board; 3x SATA instead of 2x SATA; CPU/RAM undervoltage now possible (overvoltage still possible); RAID 0+1, 5 added to RAID 0, 1; Wake On USB support added; Onboard Power LED added; Clearance under board altered to increase 3rd party CPU heatsink support.

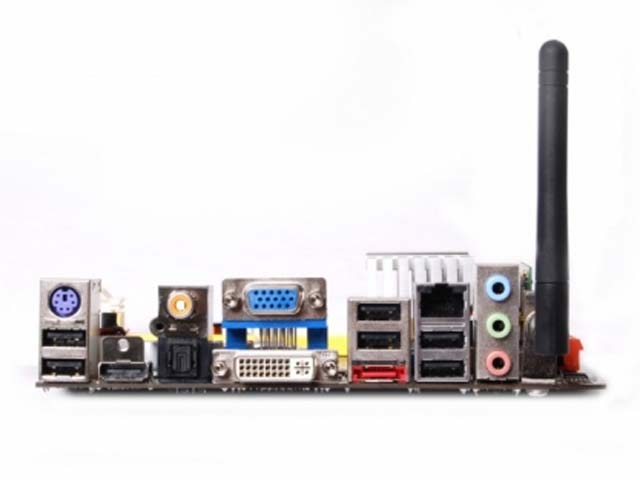

Rear Panel Connectors: PS2 Keyboard, S/PDIF optical digital audio out, S/PDIF coaxial digital audio out (not shown in some photos), VGA, DVI-I; HDMI; 6x USB 2.0; eSATA; Realtek RTL8211CL Gigabit LAN; 3x 3.5mm audio connectors, Antenna Socket for WiFi.

Board connectors: 6x USB 2.0 connectors on 3x 9pin headers; 2x DDR2 667/800 DIMM sockets; 3x SATA 3GB/s ; PCI Express 2.0 x16 (supports Hybrid SLI); S/PDIF; 24pin ATX power connector and 4pin 12V power connector (both must be connected, 24pin ATX can accept 20pin ATX power); BIOS jumper; Chassis intrusion; LGA 775 processor socket; Chassis Fan; CPU Fan; FPANEL.

Suitable cases: The standard Intel LGA 775 heatsink is considerably taller than most Mini-ITX boards and the 9300-ITX requires up to 90W under load (depending on CPU). The Nexus Psile, Venus 669, Compucase 8K01, Compucase 8K07, Silverstone SG05 and Jou Jue NU-528i all work perfectly with the 9300-ITX. Most standard Mini-ITX cases will not work due to power supply size.

*Heatsinks: To use this board in a low profile case (e.g. M300, M350) please use the Akasa 7106HP Low Profile heatsink. The standard heatsink provided with the CPU will fit taller cases (including Compucase 8K01/8K07, Jou Jye 526/528/568). Use the Akasa 7107BS if using a 1U chassis.

Note: The 9300-ITX-I-E uses DDR2 memory. This is not compatible with DDR memory. Fully tested DDR2 DIMMs are available here.

Processor Compatibility: The 9300-ITX is *not* provided with a processor. The 9300-ITX is compatible with Intel Core 2 Duo, Core 2 Quad, Pentium and Celeron up to 1333 MHz front-side bus. Compatible processors currently available include: E1200, E1400, E5200, E7300, E7400, E8400, E8500, E8600. A full compatibility list is here.

Zotac GeForce 9300-ITX WiFi supporting dual and quad core socket LGA 775 processors with nVidia MCP7A chipset, powerful integrated nVidia Geforce 9300 graphics supports PureVideo HD and CUDA H264 acceleration; RAID 0, 1, 0+1, 5; Realtek ALC662 5.1 Audio and Integrated 802.11b/g Wi-Fi. Up to 8GB of DDR3 1066/1333MHz RAM; Gigabit LAN; VGA, DVI-I & HDMI graphics outputs; S/PDIF; eSATA; 12x USB 2.0 (inc 6 internal); Fully Vista Compatible.

The Zotac GeForce GF9300-K-E board has all the great features of earlier 9300-ITX motherboards (including Wake-On-LAN) but now supports DDR3 memory.

Rear Panel Connectors: PS2 Keyboard, S/PDIF optical digital audio out, S/PDIF coaxial digital audio out (not shown in some photos), VGA, DVI-I; HDMI; 6x USB 2.0; eSATA; Realtek RTL8211CL Gigabit LAN; 3x 3.5mm audio connectors, Antenna Socket for WiFi.

Board connectors: 6x USB 2.0 connectors on 3x 9pin headers; 2x DDR3 1066/1333 DIMM sockets; 3x SATA 3GB/s ; PCI Express 2.0 x16 (supports Hybrid SLI); S/PDIF; 24pin ATX power connector and 4pin 12V power connector (both must be connected, 24pin ATX can accept 20pin ATX power); BIOS jumper; Chassis intrusion; LGA 775 processor socket; Chassis Fan; CPU Fan; FPANEL.

Suitable cases: The standard Intel LGA 775 heatsink is considerably taller than most Mini-ITX boards and the 9300-ITX requires up to 90W under load (depending on CPU). The Nexus Psile, Venus 669, Compucase 8K01, Compucase 8K07, Silverstone SG05 and Jou Jue NU-528i all work perfectly with the 9300-ITX. Most standard Mini-ITX cases will not work due to power supply size.

*Heatsinks: To use this board in a low profile case (e.g. M300, M350) please use the Akasa 7106HP Low Profile heatsink. The standard heatsink provided with the CPU will fit taller cases (including Compucase 8K01/8K07, Jou Jye 526/528/568). Use the Akasa 7107BS if using a 1U chassis.

Note: The 9300-ITX-K-E uses DDR3 memory. This is not compatible with DDR or DDR2 memory. Fully tested DDR3 DIMMs are available here.

Processor Compatibility: The 9300-ITX is *not* provided with a processor. The 9300-ITX is compatible with Intel Core 2 Duo, Core 2 Quad, Pentium and Celeron up to 1333 MHz front-side bus. Compatible processors currently available include: E1200, E1400, E5200, E7300, E7400, E8400, E8500, E8600. A full compatibility list is here.
