JBU03 Fanless Mini PC with Intel J6412 4C4T Processor, 2x Intel 2.5Gb LAN, M.2 Storage, 2x 4K HDMI and 4K DisplayPort, up to 32GB RAM
| Jetway JBU03 Fanless J6412 Mini PC with 2x 2.5Gb LAN | |
| £330.00 inc. VAT | |
| IN STOCK (Checked 07:33) |
Fully Assembled Systems and DIY Kits:
Tiny and Fanless Jetway JBU03 Barebones NUC Form Factor PC with Intel J6412 2GHz Quad Core Processor (2.6GHz Burst) with Elkhart Lake architecture. The JBU03 comes with 1x 4K@60Hz DisplayPort and 2x 4K@60Hz HDMI outputs, 1x USB 2.0, 3x USB 3.2 Gen2 Type A connectors and 2x USB 3.2 Gen2 Type C connectors. rebones unit... simply add a stick of DDR4 SODIMM memory and an M.2 (NVMe or SATA) drive to complete the internals of the JBU03.
Long Life: Product availability forecasted to at least 2036.

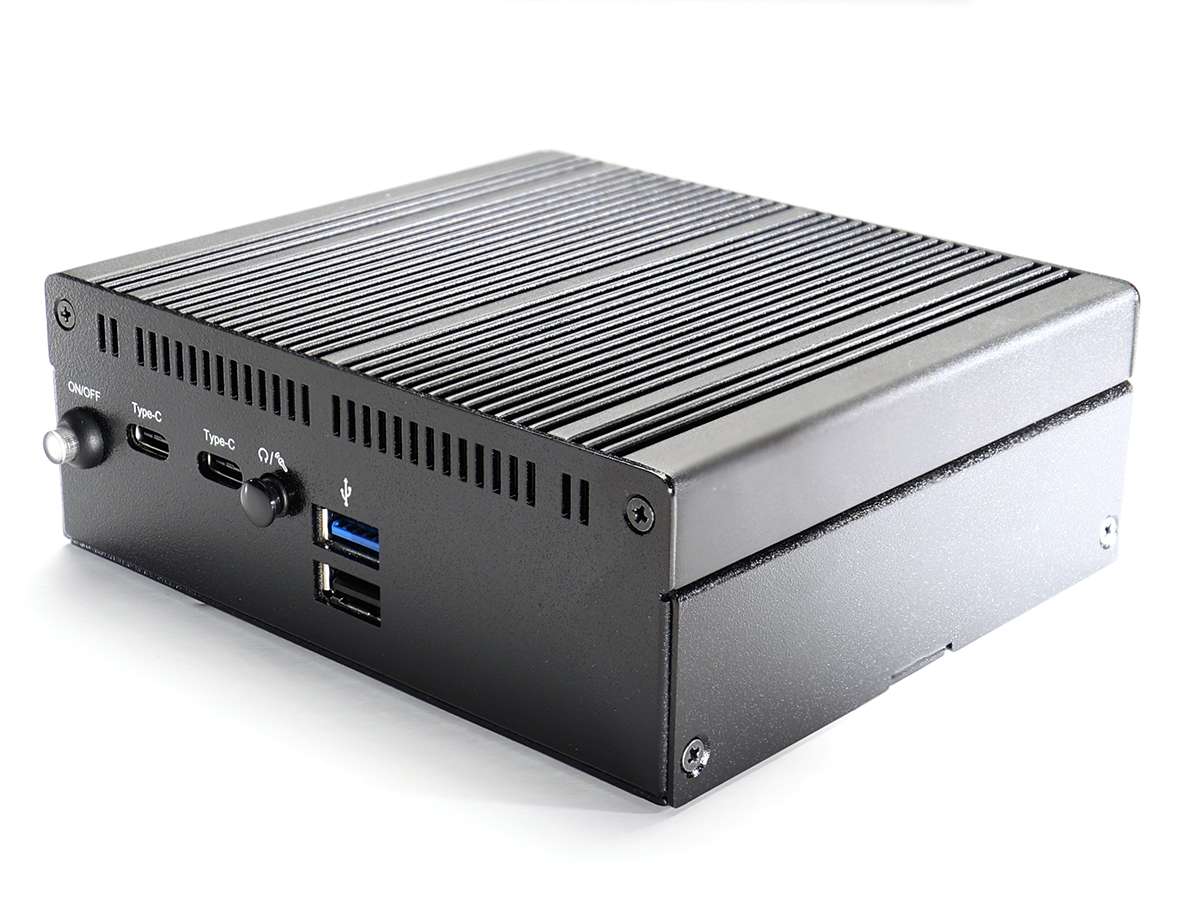

The JBU03 is powered by a 2GHz (up to 2.6GHz Burst) Quad Core Intel J6412 processor with integrated 10th Gen UHD Graphics. Stylish solid aluminium construction with external AC Adapter.
Storage: 1x M.2 (NVMe/SATA) Type 2280 Slot. Supports M.2 drives with heatsinks. Building tip: remove rear plate, then front panel to access M.2 slot.
Memory: 1x SODIMM socket supports up to 32GB DDR4 at 3200MHz.

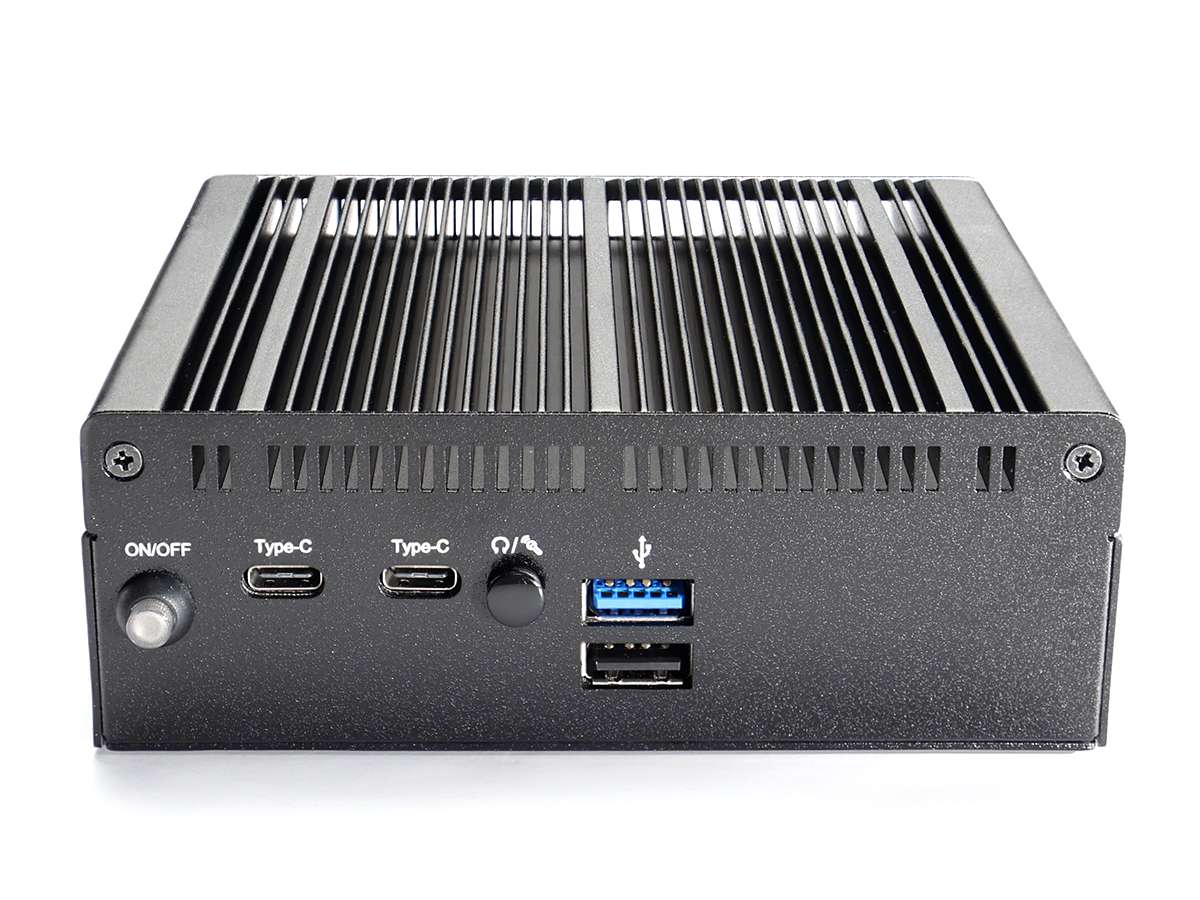

Front Panel: Illuminated Power switch; 2x USB 3.2 Gen2 (10Gb/s) Type C; 1x 3.5mm Audio Mic/Headphone Jack; 1x USB 3.2 Gen2 (10Gb/s) Type A; 1x USB 2.0 Type A.

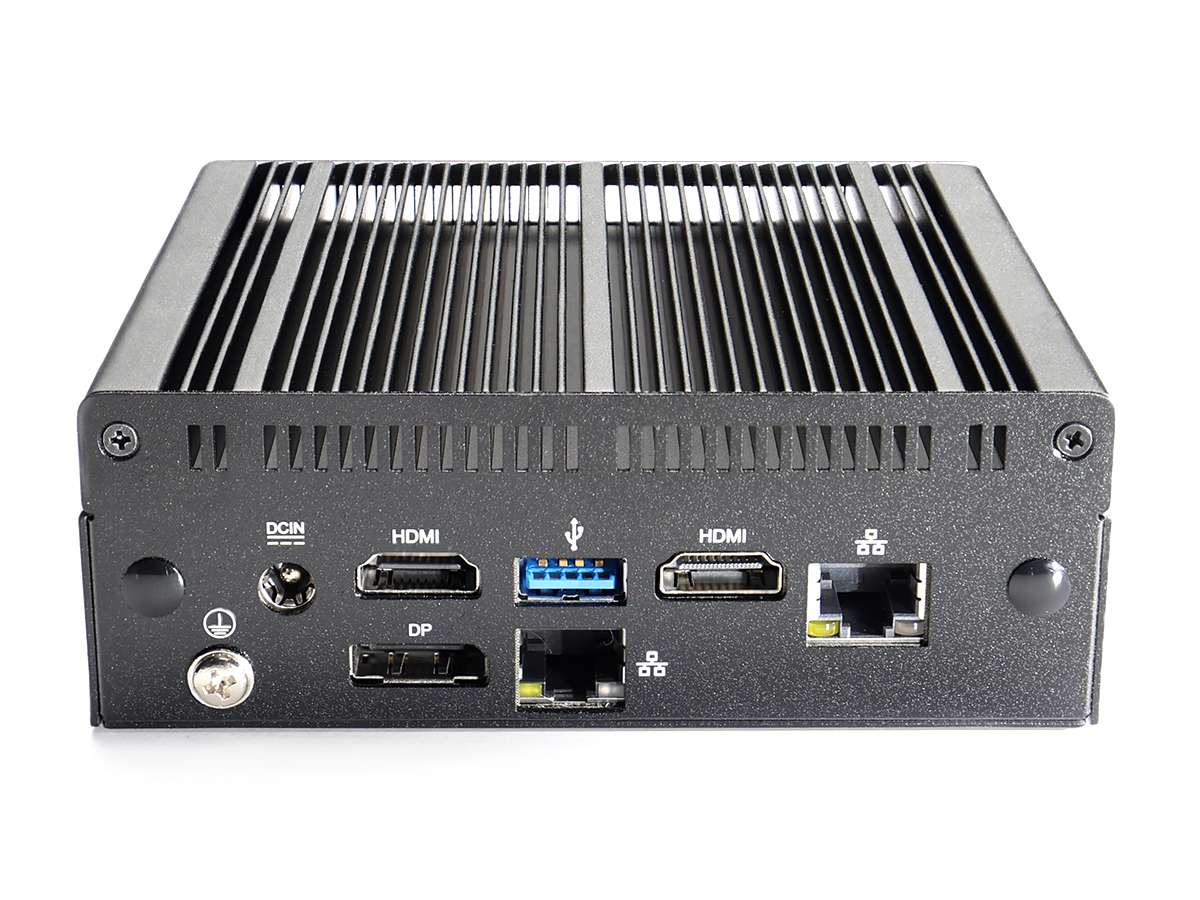

Rear Panel: 2x Antenna Holes with Covers (for optional WiFi card); Grounding Screw; 12V 2.5/5.5mm power socket (connects to supplied 40W AC Adapter); 2x HDMI 2.0b Ports (Up to 4096x2160 @ 60Hz); 1x DisplayPort 1.4 Port (Up to 4096x2160 @ 60Hz); 1x USB 3.2 Gen2 (10Gb/s) Type A; 2x Intel i225-V 2.5Gbps RJ45 LAN; Cooling vents for efficient heat dissipation.
Cooling: The JBU03 is a fanless device with integrated heatsink fins for passive cooling, ensuring silent operation. It can operate from -20°C ~ 60°C temperatures with appropriate airflow.
Power Supply: Universal 100-240V External 40W AC Adapter, UK Power Cable.
Accessories: AC Adapter; Power Cord; Wall mounting brackets.
Audio: ALC888S audio chipset supporting 8-channel audio through HDMI & DisplayPort, and a 3.5mm Mic/Headphone Jack
Optional WiFi: Wireless support can be added through an M.2 Type-E 2230 slot for WiFi/BT card (card not included).
Automatica Startup: To make the JBU03 start up automatically or restart after power failure, Select the Chipset menu in the BIOS, then select PCH-IO Configuration and then System State after Power Failure and set this to "Always On". Press F4 to save and exit the BIOS.
Windows Compatibility: 64-bit drivers available for Windows 10 and Windows 11.
Linux Compatibility: Compatible with modern Linux distributions: CentOS 9+, Debian 11.3+, Fedora 36-1.5+, OpenSUSE 15.4+, FreeBSD 13.1+, OPNSense 22.1.2+, pfSense 2.6.0+, Ubuntu 22.04+
Drivers: Manual, Windows 10 64-bit, and Windows 11 64-bit drivers: Manual; Quick Install Guide; Windows 10: Chipset, Graphics, Audio, LAN, SIO; ME, WiFi (card required); Windows 11: Chipset, Graphics, Audio, LAN, SIO; ME, WiFi (card required).

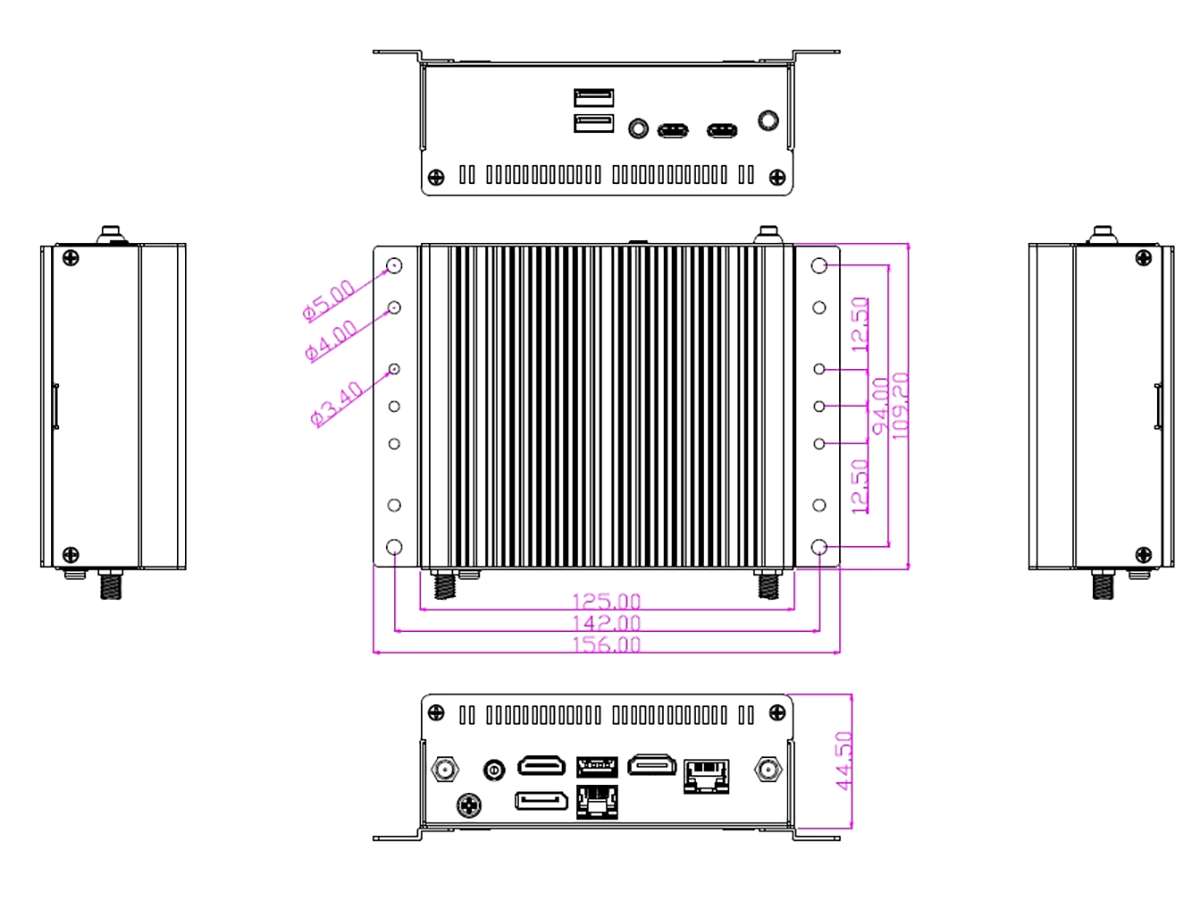

Measurements: 125 x 109.2 x 44.5 mm / 4.92 x 4.29 x 1.75 in (W x H x D); Volume: 0.607 litres.
*Note: The JBU03 supports up to 32GB DDR4 memory on a single DDR4 SODIMM. This is not compatible with DDR3 or other types of SODIMM memory.
| Specifications | ||
|---|---|---|
| Model | Jetway JBU03 | |
| Processor | Intel J6412 Quad Core, 2GHz up to 2.6GHz | |
| Architecture | Elkhart Lake | |
| Cooling | ||
| Fanless | Yes | |
| Memory | ||
| Maximum | 32GB | |
| Socket | 1x SODIMM | |
| Type | DDR4 | 3200MHz |
| Graphics | ||
| Displays | 3 | |
| Outputs | 1x DisplayPort (1.4) | 4096x2160 @ 60Hz max res. |
| 1x HDMI (2.0b) | 4096x2160 @ 60Hz max res. | |
| 1x HDMI (2.0b) | 4096x2160 @ 60Hz max res. | |
| Audio | ||
| Chipset | ALC888S | Supports 8 Channel audio |
| Connectors | 1x 3.5mm Mic/Headphone Jack | |
| Storage | ||
| Bays | 1 | |
| Type | 1x M.2 (NVMe/SATA) 2280 Slot | |
| Network | ||
| LAN Ports | 2 | |
| LAN 0: | Intel i225-V 2.5Gbps | |
| LAN 1: | Intel i225-V 2.5Gbps | |
| USB | ||
| Connectors | 5 | |
| Type | 1x USB 2.0 Type A | (Front) |
| 1x USB 3.2 Gen2 (10Gb/s) Type A | (Front) | |
| 1x USB 3.2 Gen2 (10Gb/s) Type A | (Rear) | |
| 2x USB 3.2 Gen2 (10Gb/s) Type C | (Front) | |
| Expansion | ||
| M.2 WiFi | 1x M.2 Type-E 2230 slot for WiFi/BT | Unpopulated |
| Power Supply | ||
| Type | External | |
| Input | 100-240 AC | C14 Power Connector |
| Output | 12V DC | |
| Power | 40W | |
| Accessories | ||
| Included |
|
|
| Driver Support | ||
| OS | Windows 10 64-bit
Windows 11 64-bit |
|
| Dimensions | ||
| W x D x H | 125 x 109.2 x 44.5 mm | |
| Volume | 0.607 litres | |
